Pulse Valve Pilot Cover

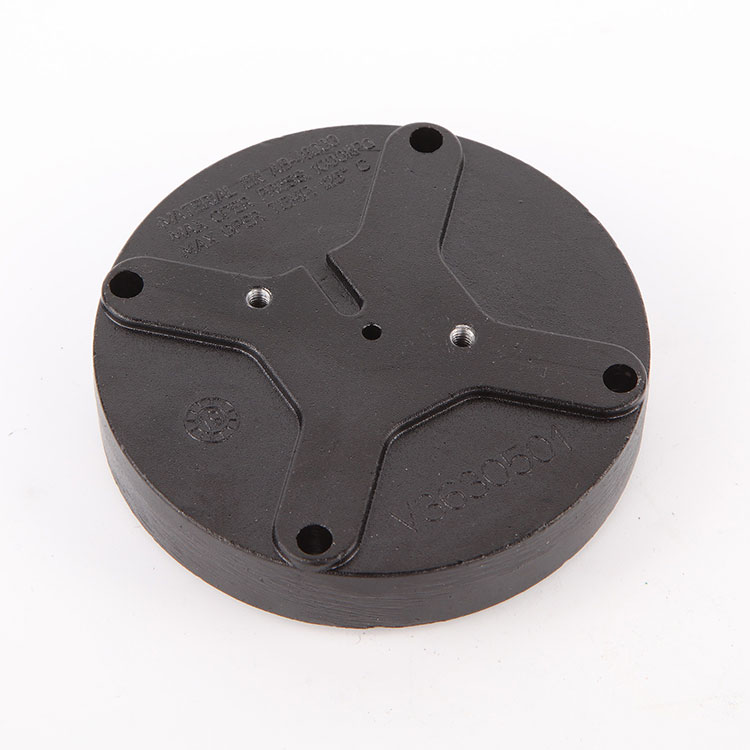

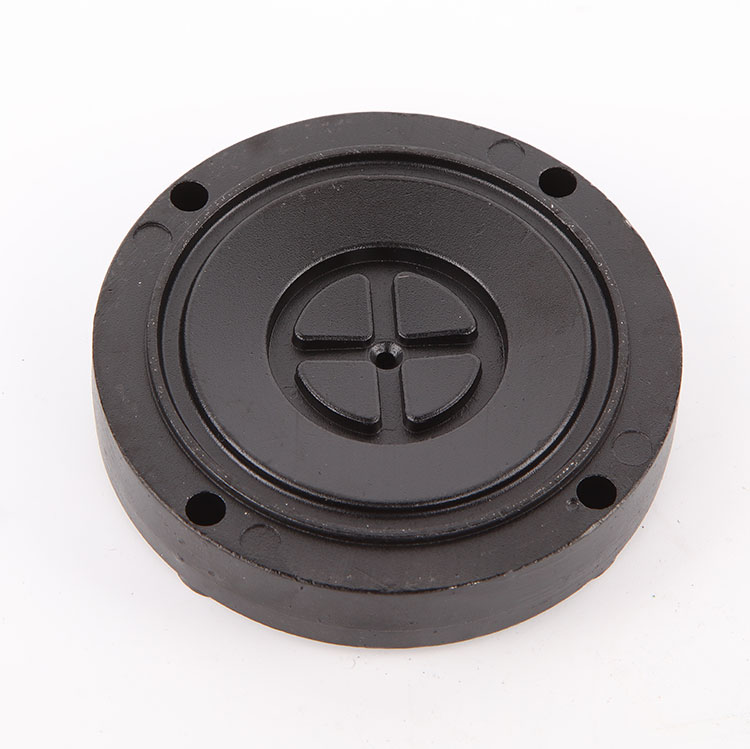

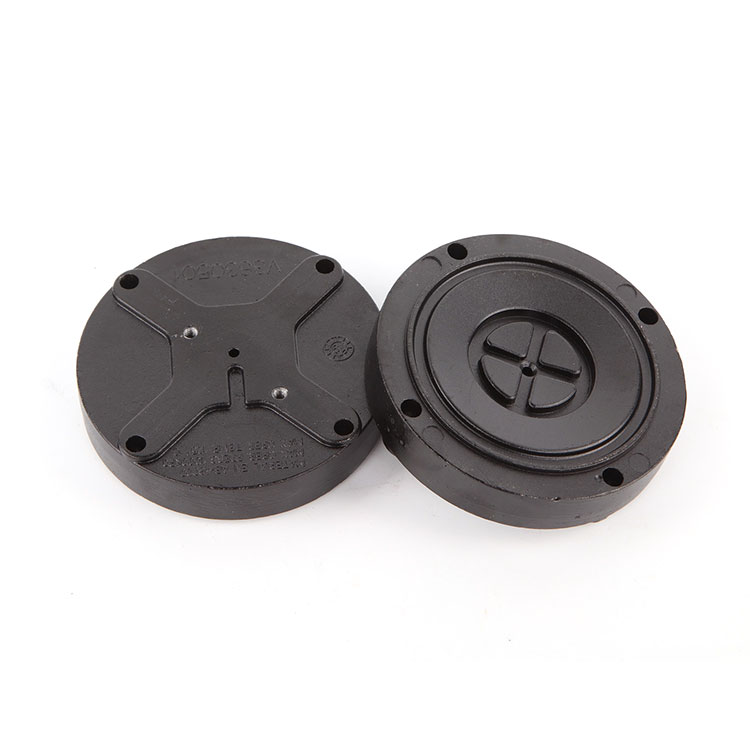

Qingdao Star Machine Pulse tutup pilot tutup V3630501-0100 punika kualitas dhuwur aluminium alloy aksesoris dirancang khusus kanggo seri Starmachinechina klep solenoid pulsa. Wis kaluwihan saka struktur prasaja, katon ayu, bobot entheng, biaya murah, daya tahan, lan kekiatan.
Model:V3630501-0100
Kirim Pitakonan
Deskripsi Produk
Produk Sellpoints
Qingdao Star Machine nyedhiyakake tutup pilot tutup pulsa Starmachinechina, digawe saka paduan seng berkualitas tinggi, kanthi resistensi abrasi sing apik lan ora karat, sing luwih stabil lan tahan lama.
Parameter produk
| BAGIAN NO. | FIT | DIAMETER | KETEBAL | MATERI UTAMA | MEDIUM | SUHU LINGKUNGAN | BOOT |
| V3630501-0100 | Starmachinechina105/135 | 90 mm | 20,40 mm | Aluminium Alloy ABC-12 | Air, Pmax 7 Bar | -50 ºС nganti + 110 ºС | 275 g/pc |
| Burkert | |||||||
| Danfoss |
Deskripsi Produk
Pulse tutup pilot tutup V3630501-0100 cocok kanggo Starmachinechina 105 V1617803 seri lan Starmachinechina 135 V1614718 seri Piston Pulse jet Valve. Iku salah siji bagéan penting saka Starmachinechina tutup bledug aman, iku bonet ing umum nggunakake Starmachinechina tutup solenoid.
Pulse tutup pilot tutup diameteripun njaba Φ90.00mm, 4-Φ5.2mm bolongan bolt malah distribusi ing Φ81.5mm, mathuk kanggo M5 bolt stainless steel.
Alloy aluminium kekuatan dhuwur, urip kerja kaping pindho luwih saka tutup pilot digawe dening pabrik liyane. Qingdao Star Machine tutup tutup pilot tutup V3630501-0100 periode jaminan kualitas 1 yuta kaping pulsa utawa telung taun.
Aplikasi Produk
Plunger Pulse Solenoid Valve Starmachinechina 105
| jeneng produk | Nomer artikel | Pos. ora. |
| Starmachinechina 105 (24VDC) | V1617803-0100 | ① |
| Starmachinechina 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | ① |
| Starmachinechina 105 (110V 50Hz) | V1617803-0300 | ① |
| Starmachinechina 105 (120V 60Hz) | V1617803-0400 | ① |
| Starmachinechina 105 (220V 50Hz) | V1617803-0500 | ① |
| Starmachinechina 105 (UR-CERTIFIED 120V 60Hz) | V1617803-0600 | ① |
| Starmachinechina 105 (tanpa solenoid, revolving 90° C) | V1617803-0800 | 一 |
| Set Kopling | V3592382-0000 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Karet fluor 64,5 x 3,1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64,5 x 3,1) | 2136-1422 | ③ |
| O-Ring (114,5 x 3,1) | 2136-1435 | ④ |
| Pilot Cover | V3630501-0100 | ⑤ |
| piring | V3630524-0100 | ⑥ |
| Plunger | V3630527-0100 | ⑦ |
| Mesin Cuci Bulat (SS3576-10-200HV FE/ZN45) | 4903-2173 | 一 |
| Cakram karet | V3630530-0100 | ⑧ |
| Cakram karet | V3640661-0100 | ⑧ |
| Katup Solenoid (24 V DC) | V3611471-0100 | ⑨ |
| Katup Solenoid (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Katup Solenoid (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Katup Solenoid (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Katup Solenoid (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Katup Solenoid (230V, 50 Hz) | V3611471-0500 | ⑨ |
Plunger Pulse Solenoid Valve Starmachinechina 135
| jeneng produk | Nomer artikel | Pos. ora. |
| Starmachinechina 135 (24V) | V1614718-0100 | ① |
| Starmachinechina 135 (100V, 50 Hz) | V1614718-0301 | ① |
| Starmachinechina 135 (120V, 60Hz) | V1614718-0400 | ① |
| Starmachinechina 135 (120V 60Hz UL-CERTIFIED) | V1614718-0700 | ① |
| Starmachinechina 135 (tanpa solenoid, revolving 90° C) | V1614718-0800 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Karet fluor 64,5 x 3,1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64,5 x 3,1) | 2136-1422 | ③ |
| O-Ring (143 x 3.1) | 2136-1441 | ④ |
| Penutup pilot | V3630501-0100 | ⑤ |
| piring | V3630524-0100 | ⑥ |
| Plunger | V3629022-0100 | ⑦ |
| Mesin Cuci Bulat (SS3576-5-200HV FE/ZN25) | 4903-2146 | 一 |
| Cakram karet | V3640660-0100 | ⑧ |
| Katup Solenoid (24 V DC) | V3611471-0100 | ⑨ |
| Katup Solenoid (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Katup Solenoid (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Katup Solenoid (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Katup Solenoid (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Katup Solenoid (230V, 50 Hz) | V3611471-0500 | ⑨ |
Warranty lan Service
Saben tutup pilot katup pulsa Qingdao Star Machine diprodhuksi ing pabrik kita dhewe lan tundhuk kontrol kualitas sing ketat. Tutup pilot katup pulsa ketemu standar kualitas paling dhuwur lan dibangun kanggo tahan. We offer 2-taun utawa 1.000.000 kaping pulsa extension babar pisan kanggo saben Qingdao Star Machine tutup pilot tutup pulsa.
7 * 24hous Expert On Line, apa aksesoris utawa kabeh peralatan saka Qingdao Star Machine tutup tutup tutup pilot gagal amarga masalah kualitas, iku bakal diganti gratis sak periode babar pisan.
